0.8mm Grey VHB Foam Tape Self Adhesive

0.8mm Grey VHB Foam Tape Self Adhesive

Acrylic foam tape is a double sided permanent assembly tape which bonds high and medium surface energy substrates. * Base material: acrylic foam * Color: gray, white, transparent * VHB: very high bonding

0.8mm Grey VHB Foam Tape Self Adhesive

PRODUCT DESCRIPTION

0.8mm Grey VHB Foam Tape Self Adhesive

1.Backing: acrylic foam

2.Color: black, white,gray,clear

3.For metal, glass, window,door,furniture, automotive, industry bonding


FEATURES

1.A whole and complete range of color and thickness, similar to 3M tape, but much lower in price, cost effective.

2.Comform to irregular surface because of its flexibility

3.Excellent holding power and durability for permanent bonding


APPLICATIONS





APPLICATION

-Dustproof and airproof of the glass curtain wall and assembly.

-For building operations such as heat insulation, connection, bundling, amendment, sealing and signs.

-The processing and assembly of electronic and digital products, home appliance. The adhesion of advertisement board, LED plate.

-Used in automobile: nameplate, decoration bars, marks.

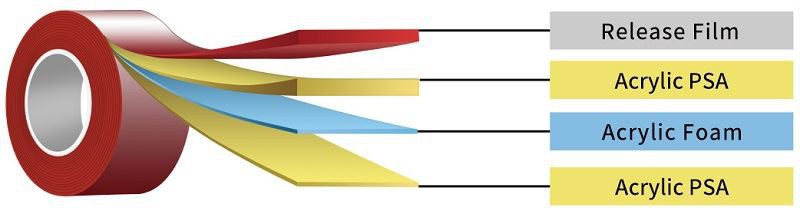

CONSTRACTION

Acrylic PSA

Acrylic Foam

Acrylic PSA

Release Film

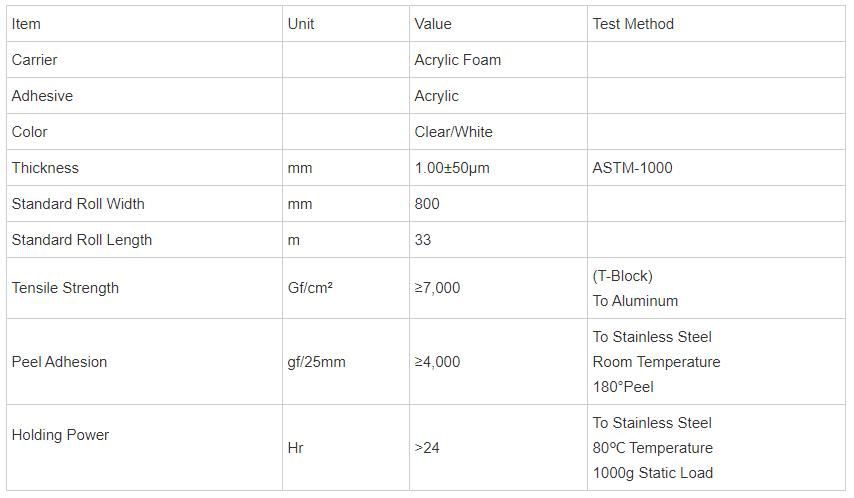

PHYSICAL PROPERTIES

Item

Unit

Value

Test Method

Carrier


Acrylic Foam


Adhesive


Acrylic


Color


Clear/White


Thickness

mm

1.00±50μm

ASTM-1000

Standard Roll Width

mm

800


Standard Roll Length

m

33


Tensile Strength

Gf/cm²

≥7,000

(T-Block)

To Aluminum

Peel Adhesion

gf/25mm

≥4,000

To Stainless Steel

Room Temperature

180°Peel

Holding Power



Hr

>24

To Stainless Steel

80℃ Temperature

1000g Static Load

These values are measured values and not guaranteed value


SHELF LIFE

Product shelf life is 2 years from date of manufacture when stored at room temperature conditions (72°F [22°C] and 50% RH) in the products original packaging.



AVAILABLE SIZES

Width: Can be Customized

Length: Can be customized

Custom Sizes: If you need customized sizes or die cut parts please feel free to contact NKS sales representative.


RELATED PRODUCTS


Die-cutting VHB Foam Dots


vhb foam tape dots


Die-cutting VHB Foam Discs


vhb foam tape discs


Die-cutting VHB Foam Discs


vhb acrylic foam tape


Naikos Industrial is one of the excellent manufacturers and suppliers of 0.8mm grey vhb foam tape self adhesive in China, which is equipped with a professional factory and advanced equipment. We aims at providing you with high quality products with well heat resistance and strong durability which is easy to process. Welcome to buy tapes with us at competitive price.
