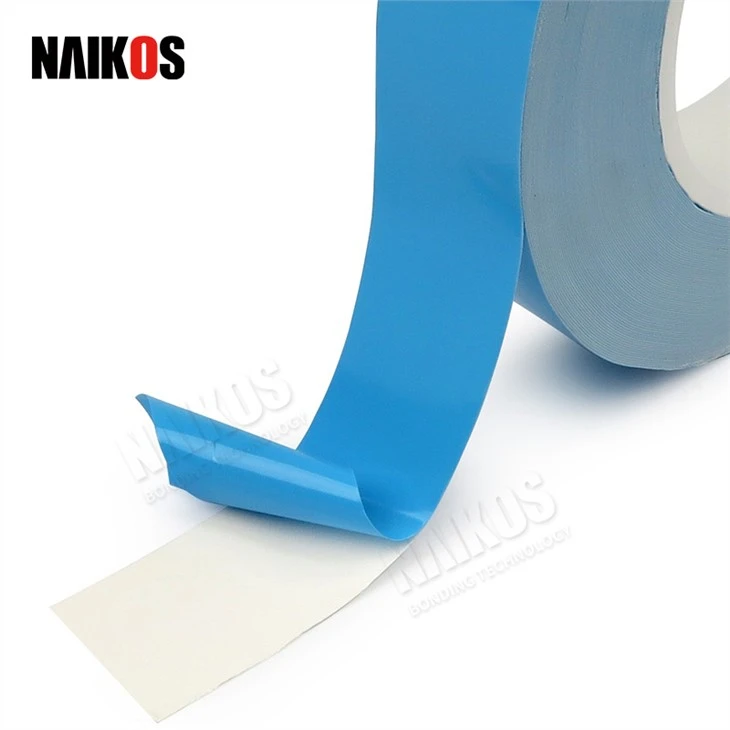

Thermally Conductive Adhesive Transfer Tape For LED

NKS Thermally Conductive Adhesive Transfer Tape for LED NKS-05N,NKS-10N,NKS-15N,NKS-20N, NKS25N,NKS-30N,NKS-40N are designed to provide a preferential heat transfer path between heat-generating components and heat sinks or other cooling devices.

Thermally Conductive Adhesive Transfer Tape for LED




PRODUCT DESCRIPTION


NKS Thermally Conductive Adhesive Transfer Tape for LED NKS-05N,NKS-10N,NKS-15N,NKS-20N,

NKS25N,NKS-30N,NKS-40N are designed to provide a preferential heat transfer path between heat-generating components and heat sinks or other cooling devices.



FEATURES

* Good acrylic PSA adhesion

* Adhesive transfer tape

* Very good thermal conductivity

* Transfer adhesive tape

* Soft and compressibility

* Thermal transfer tape

* Easy to assemble

* Tape transfer

* Stable and Economy

* Thermally conductive pad


CONSTRUCTION


PHYSICAL PROPERTIES

Item No.

Thickness

(mm)

180°Peel Strength

(PSTC-101

)(N/25mm)

Insulation Strength

(ASTM D149)

(KV)

Thermal Impedance

@40PSI

(AMD2240)

(C*in2/W)

Thermal Conductivity

(ASTM D22470)

(W/m-k)

Temperature Range

NKS-05N

0.05±10%

>10.78

1.57

0.414

1.20

-20℃~+120℃

NKS-10N

0.10±10%

>13.72

2.22

0.558

NKS-15N

0.15±10%

>13.72

2.55

0.654

NKS-20N

0.20±10%

>15.68

4.29

1.070

NKS-25N

0.25±10%

>15.68

5.0

1.173

NKS-30N

0.30±10%

>15.68

5.0

1.234

NKS-40N

0.40±10%

>15.68

5.0

1.525

Note: The above technical information and data should be considered representative or typical only and should not be used.


SHELF LIFE

Product shelf life is 2 years from date of manufacture when stored at room temperature conditions (72°F [22°C] and 50% RH) in the products original packaging.


AVAILABLE SIZES

Width: Maximum width 41.3 inches (1030mm). (Can be Customized)

Length: 25m/50m (Can be customized).

Custom Sizes: If you need customized sizes or die cut parts please feel free to contact NKS sales representative.
