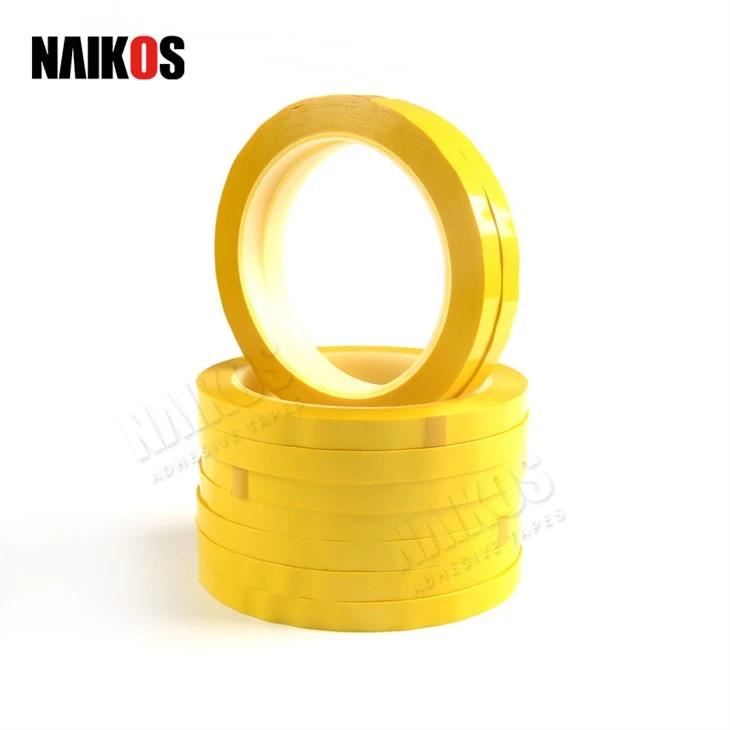

Polyester Tape With Acrylic Adhesive For Cable Insulation

Polyester tape with acrylic adhesive for cable insulation is made of polyester film tape, single side coated with acrylic adhesive.

Polyester Tape with Acrylic Adhesive for Cable Insulation

PRODUCT DESCRIPTION

Polyester Tape with Acrylic Adhesive for Cable Insulation

Polyester tape with acrylic adhesive for cable insulation is made of polyester film tape, single side coated with acrylic adhesive.

FEATURES

* Good holding power

* Chemical resistance

* High temperature resistance

* Polyester tape with acrylic adhesive



APPLICATION

* Winding of transformer, coil, capacitor and electric wire

* Excellent for decorative striping

* Edging of a wide variety of surfaces

* Can be used as a sensing tape where automatic equipment is used in sorting, counting, or identifying  roll splices and end of rolls

CONSTRUCTION

PHYSICAL PROPERTIES

Item



Carrier

Polyester Film

Adhesive

Acrylic

Filling

Halogen Free Pigment

Carrier Thickness

0.025mm

0.05mm

Total Thickness

0.055mm

0.08mm

Peel Strength Power

≥44 N/10mm

≥88 N/10mm

180°Peeling Strength

≥300 N/M


Elongation

≥80%

≥50%

Dielectric Breakdown

≥5.0KV

≥6.5KV

Heat Resistance

150℃

Cold Resistance

≤-10℃

Solvent Resistance

Ok

Flame Retardant

UL 510

These values are measured values and not guaranteed value.

AVAILABLE SIZES

Width:Maximum width 1270mm.(Can be Customized)

Length:66m(Can be customized).

Custom Sizes:If you need customized sizes or die cut parts please feel free to contact NKS sales representative
