High Temperature Polyester Tape Heat Resistant PET Silicone Tape One Sided Insulation Tape

High temperatur epolyester tape heat resistant PET silicone tape one sided insulation tape used in 3d printing applications.

High Temperature Polyester Tape Heat Resistant PET Silicone Tape One Sided Insulation Tape


PRODUCT DESCRIPTION

High Temperature Polyester Tape Heat Resistant PET Silicone Tape One Sided Insulation Tape

High temperature polyester tape heat resistant PET silicone tape one sided insulation tape used in 3d printing applications.


FEATURES

* High temperature resistant

* Silicone adhesive,no glue residue

* Best die-cut tape to mount various of precison molded parts



APPLICATION

* High temperature protection.

* Insulation / Lithium battery extremely car fixed

* Transform coil wrapping and fixed

* Chip insetting.

* 3D printer

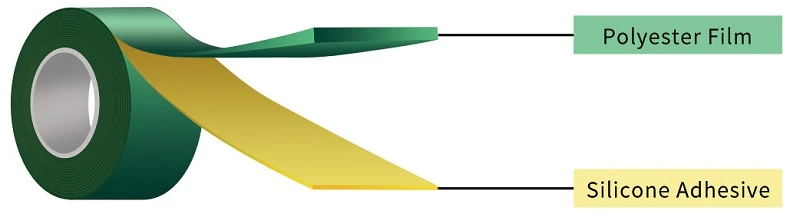

CONSTRACTION

Polyester Film

Silicone Adhesive




PHYSICAL PROPERTIES

Item

NKS-3565SIG

NKS-5080SIG

NKS-2560SIG

NKS-2590SIG

Color

Clear/Green/Blue

Clear/Green/Blue

Clear/Green/Blue

Red/Yellow

Carrier

Polyester

Polyester

Polyester

Polyester

Adhesive

Silicone

Silicone

Silicone

Silicone

Carrier Thickness (mm)

0.035

0.05

0.025

0.025

Adhesive Thickness

 (mm)

0.025

0.03

0.035

0.065

Total Thickness (mm)

0.06

0.08

0.060

0.09

Adhesion (N/25mm)

6

6

6

8

Tensile Strength

 (N/25mm)

135

220

115

135

Elongation at Break (%)

40

50

35

35

Corrosion Resistance

1

1

1

1

Storage Condition

20℃,65RH

20℃,65RH

20℃,65RH

20℃,65RH

Long Term Heat

 Resistance (℃)

180

180

180

180

Short Term Heat

Resistance (℃)

220

220

220

220

RoHS

Complied

Width

2~980mm

Length

33m/66m

These values are measured values and not guaranteed value


SHELF LIFE

Product shelf life is 2 years from date of manufacture when stored at room temperature conditions (72°F [22°C] and 50% RH) in the products original packaging.


AVAILABLE SIZES

Width: Maximum width 38.58 inches (980mm). (Can be Customized)

Length: 33m/66m (Can be customized).

Custom Sizes: If you need customized sizes or die cut parts please feel free to contact NKS sales representative.
