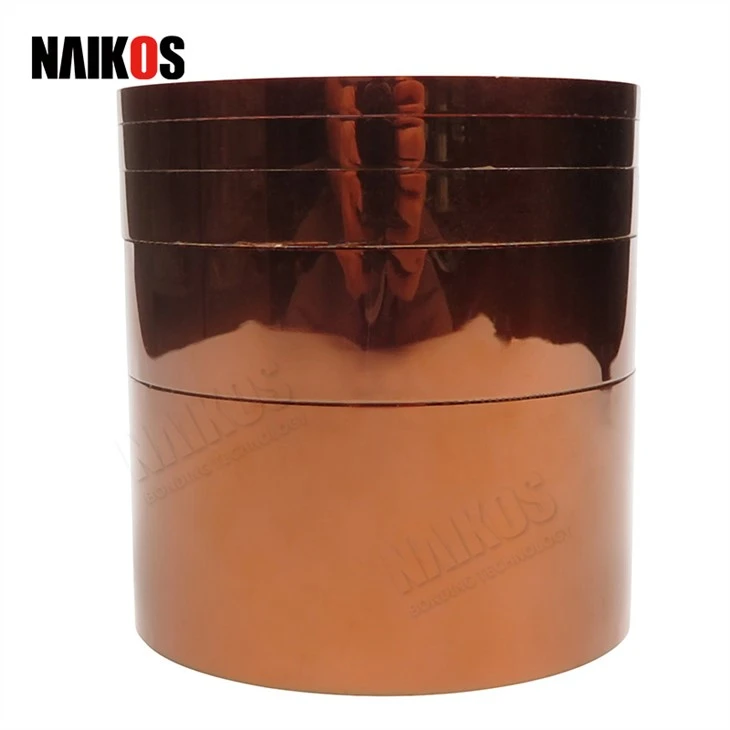

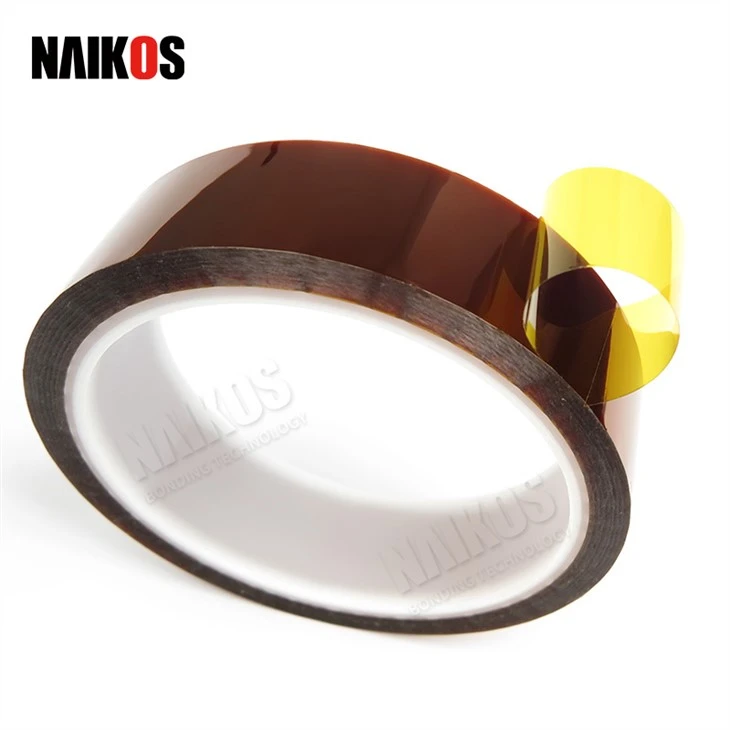

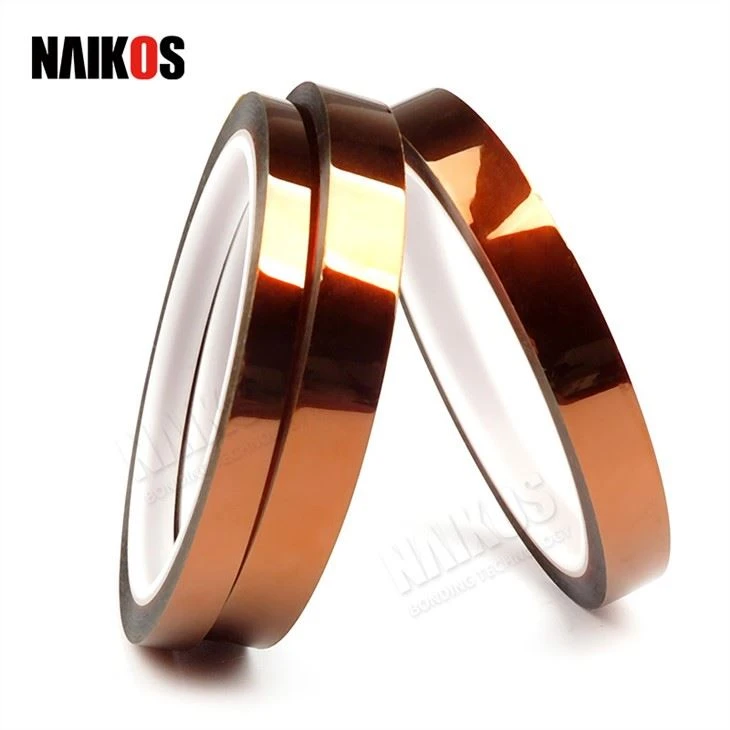

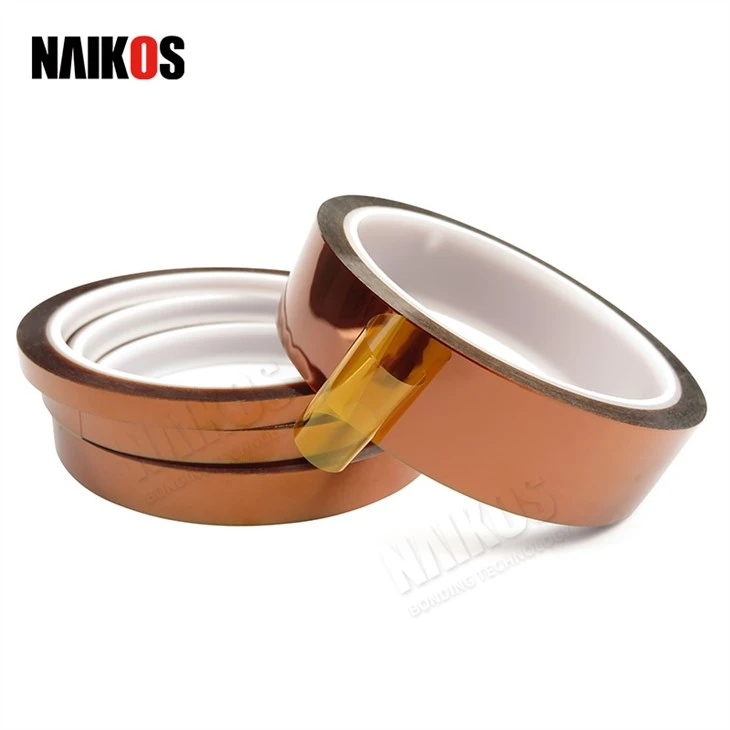

0.06mm Polyimide Tape High Temperature Silicone Adhesive Polyimide Kapton Tape For PCB Production

Polyimide tape is made from high quality polymide film as the bottom material, and it enjoys characteristics of good anti-high temperature ,and excellect mechanical property , with diffent anti-temprrature grade by diffent sticky agent.

0.06mm Polyimide Tape High Temperature Silicone Adhesive Polyimide Kapton Tape for PCB Production

PRODUCT DESCRIPTION

0.06mm polyimide tape high temperature silicone adhesive polyimide kapton tape for PCB production is made from high quality polymide film as the bottom material, and it enjoys characteristics of good anti-high temperature ,and excellect mechanical property , with diffent anti-temprrature grade by diffent sticky agent.


FEATURES

* Adhesive Coated Polyimide Film Tapes

* High temperature, solvent resistant, stable and reliable

* Easy peel off no glue residue

* H-class insulation

* Suitable for pcb 3d printing and transformer insulation



APPLICATION

* Etching

* Fiber Optics Cable

* High temperature powder coating

* Semiconductor manufacturing

* Wave soldering during circuit board assemb

* Automotive sensor and manifolds

* Insulating circuit boards.


CONSTRACTION

Single Side:

Polyimide Film

Silicone Adhesive

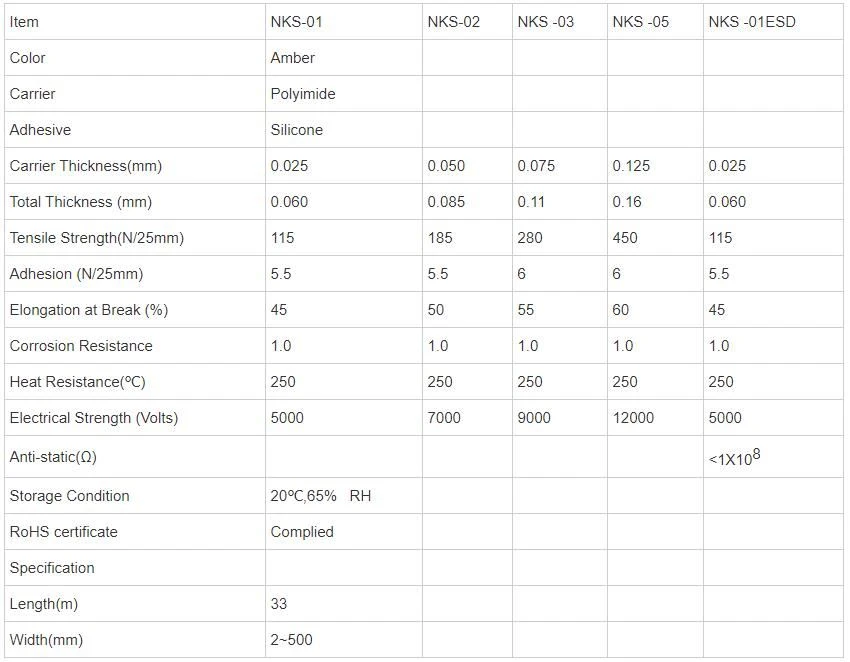

PHYSICAL PROPERTIES

Item

NKS-01

NKS-02

NKS -03

NKS -05

NKS -01ESD

Color

Amber

Carrier

Polyimide

Adhesive

Silicone

Carrier Thickness(mm)

0.025

0.050

0.075

0.125

0.025

Total Thickness (mm)

0.060

0.085

0.11

0.16

0.060

Tensile Strength(N/25mm)

115

185

280

450

115

Adhesion (N/25mm)

5.5

5.5

6

6

5.5

Elongation at Break (%)

45

50

55

60

45

Corrosion Resistance

1.0

1.0

1.0

1.0

1.0

Heat Resistance(℃)

250

250

250

250

250

Electrical Strength (Volts)

5000

7000

9000

12000

5000

Anti-static(Ω)





<1X108

Storage Condition

20℃,65%   RH

RoHS certificate

Complied

Specification

Length(m)

33

Width(mm)

2~500

These values are measured values and not guaranteed value


SHELF LIFE

Product shelf life is 2 years from date of manufacture when stored at room temperature conditions (72°F [22°C] and 50% RH) in the products original packaging.


AVAILABLE SIZES

Width: Maximum width 19.68 inches (500mm). (Can be Customized)

Length: 33m (Can be customized).

Custom Sizes: If you need customized sizes or die cut parts please feel free to contact NKS sales representative.
