Product Description
Thermal conductive double-sided tape is made of advanced thermal conductive PSA. The thermal conductive tape has high thermal conductivity and insulation properties and has It can adapt to a large temperature range, can fill uneven surfaces, can tightly and firmly fit the heat source device and the heat sink, and quickly conduct heat away.
Feature
* High Performance
This high-performance thermal double-sided tape dissipates heat and extreme temperatures - preventing damage in extended exposure to high temperatures like LED strips and 3D Printer beds.
* Residue-Free
The double-sided thermal tape is thermal-shock resistant and residue-free. It resists high temperatures while leaving a clean and smooth base finish on the printed model.
* Easy to Install
The thermal adhesive tape is easy to manage, handle, and install - all thanks to its optimal thickness. Its adhesive liner is easy to peel off and cut.
Product Construction

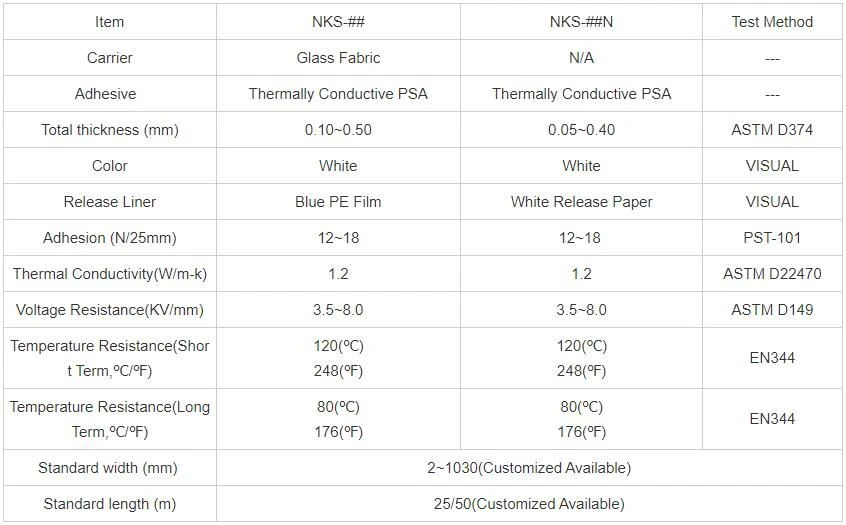

Specification
| Item | NKS-## | NKS-##N | Test Method |
| Carrier | Glass Fabric | N/A | --- |
Adhesive | Thermally Conductive PSA | Thermally Conductive PSA | --- |
Total thickness (mm) | 0.10~0.50 | 0.05~0.40 | ASTM D374 |
Color | White | White | VISUAL |
Release Liner | Blue PE Film | White Release Paper | VISUAL |
Adhesion (N/25mm) | 12~18 | 12~18 | PST-101 |
Thermal Conductivity(W/m-k) | 1.2 | 1.2 | ASTM D22470 |
Voltage Resistance(KV/mm) | 3.5~8.0 | 3.5~8.0 | ASTM D149 |
Temperature Resistance(Short Term,℃/℉) | 120(℃) 248(℉) | 120(℃) 248(℉) | EN344 |
Temperature Resistance(Long Term,℃/℉) | 80(℃) 176(℉) | 80(℃) 176(℉) | EN344 |
Standard width (mm) | 2~1030(Customized Available) | ||
| Standard length (m) | 25/50(Customized Available) | ||
Notice: The above were reference values. For detailed information, please contact Naikos.

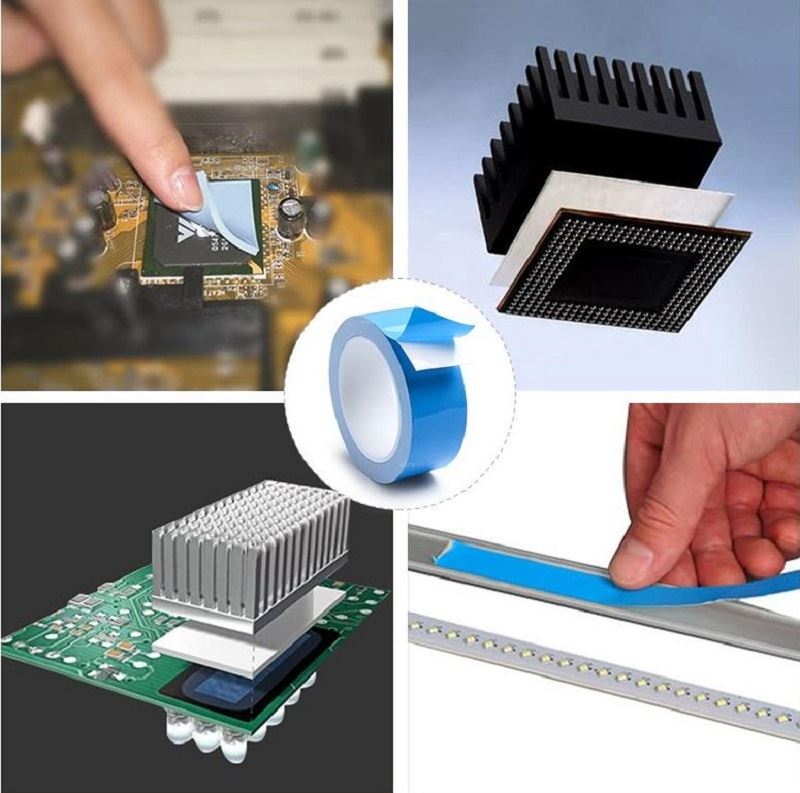

Application
Thermal conductive double-sided tape is widely used in electronics, the LED lighting industry, the TV field, and mold heat-conducting applications.
