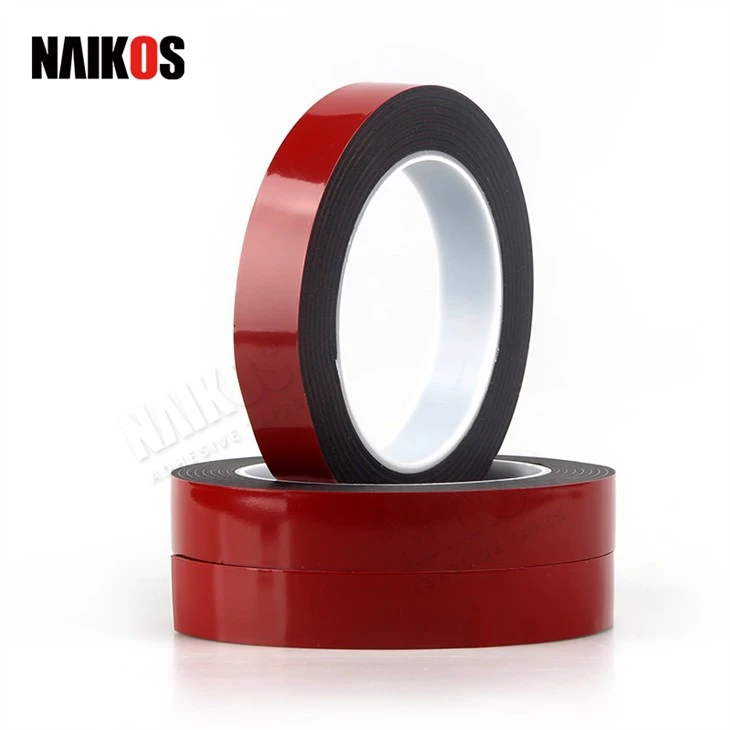

Acrylic Foam Tape Solar VHB High Strength Double Sided Adhesive Tape

Acrylic foam tape consisting a acrylic foam backing, on a release film, coated with acrylic adhesive.

Send Inquiry Chat Now

Download

Acrylic Foam Tape Solar VHB High Strength Double Sided Adhesive Tape

Double sided foam tape is designed for adhering to the irregular surface, fixing the nameplate, auto-mirror and often used in the automobile industry such as door sealing strips, pedal and metal boards. Specially suitable for the fixation of inner structure in the glass combination like the glass curtain wall and soundproof wall etc; also used to stick the car decorations and for the combination orientation of sound source inside the voice box.

FEATURES

1) Moderate thickness, good softness, suitable for different use space

2) Good flexibility, prevent components moving when shaken

3) Good holding power, good adhesion to the rough complex surface.

4) Good resistance to temperature and solvent; comply with ROHS environmental standard

5) Surface release material: white paper /other colored release film

6) Backing material / color: Black /White PE foam

7) Adhesive: light white solvent pressure-sensitive adhesive

CONSTRACTION

Red PE Film

Pressure Sensitive Adhesive

Acrylic Foam

Pressure Sensitive Adhesive

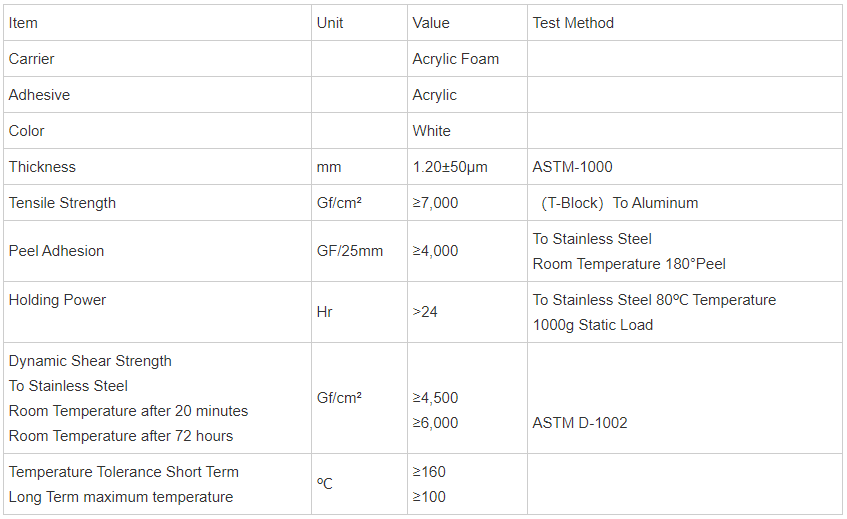

PHYSICAL PROPERTIES

Item	Unit	Value	Test Method
Carrier		Acrylic Foam
Adhesive		Acrylic
Color		White
Thickness	mm	1.20±50μm	ASTM-1000
Tensile Strength	Gf/cm²	≥7,000	（T-Block）To Aluminum
Peel Adhesion	gf/25mm	≥4,000	To Stainless Steel Room Temperature 180°Peel
Holding Power	Hr	>24	To Stainless Steel 80℃ Temperature 1000g Static Load
Dynamic Shear Strength To Stainless Steel Room Temperature after 20 minutes Room Temperature after 72 hours	Gf/cm²	≥4,500 ≥6,000	ASTM D-1002
Temperature Tolerance Short Term Long Term aximum temperature	℃	≥160 ≥100

These values are measured values and not guaranteed value
