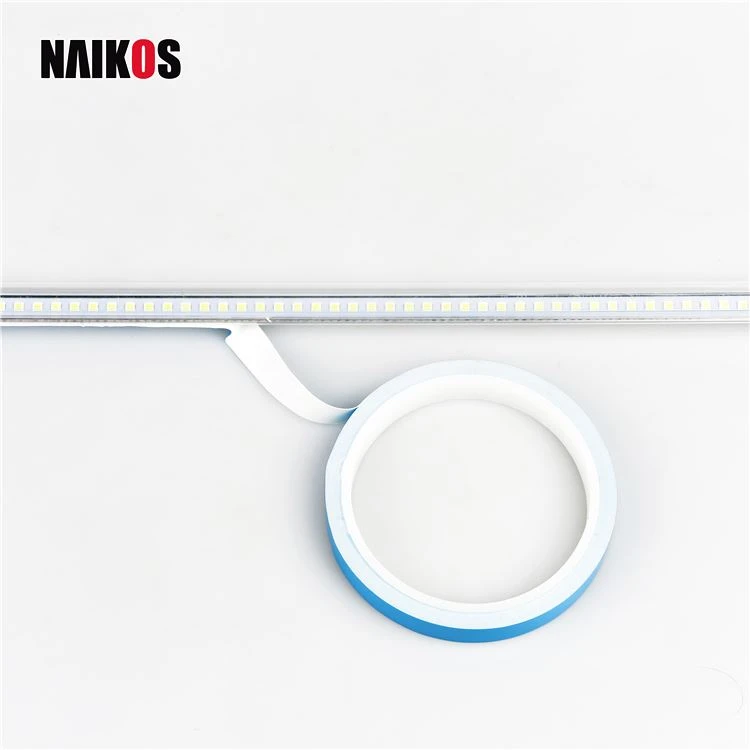

Thermal Conductive Fiberglass Insulation Adhesive Tape

Thermal Conductivity: 1.2W/m-k
Temperature Range: -20℃~+120℃
Feature: insulation, softness, compression, NKS thermal tape is great helper to solve heat dissipation for many electronics products.

Thermal Conductive Fiberglass Insulation Adhesive Tape


PRODUCT DESCRIPTION

Thermal conductive adhesive tape is made of thermal conductive pressure sensitive adhesive with glass fabric cloth. Which make the heat sink and IC chip bonding, make high power LED and heat aluminum bonding, replace with screw fixed, to achieve the most effective thermal dissipation.NKS series thermal conductive tape is suitable to apply to electronic mechanical components assembly such as the heatsink module and LED light bar module to provide a better heat-transfer path between heat generating components and heat sink or other cooling devices.





FEATURES

* High thermal conductivity

* Easy to use: Just stick on surface

* Wide working temperature range

* High Bonding

* Soft


CONSTRUCTION



PHYSICAL PROPERTIES

Item No.

Thickness

(mm)

180°Peel Strength

(PSTC-101

)(N/25mm)

Insulation Strength

(ASTM D149)

(KV)

Thermal Impedance

@40PSI

(AMD2240)

(C*in2/W)

Thermal Conductivity

(ASTM D22470)

(W/m-k)

Temperature Range

NKS-10

0.10±10%

>13.72

2.22

0.626

1.20

-20℃~+120℃

NKS-15

0.15±10%

>13.72

2.55

0.715

NKS-20

0.20±10%

>13.72

4.29

1.125

NKS-25

0.25±10%

>13.72

5.0

1.196

NKS-30

0.30±10%

>13.72

5.0

1.445

NKS-50

0.50±10%

>13.72

5.0

2.098

Note: The above technical information and data should be considered representative or typical only and should not be used.


AVAILABLE SIZES

Width: Maximum width 41.3 inches (1030mm). (Can be Customized)

Length: 25m/50m (Can be customized).
