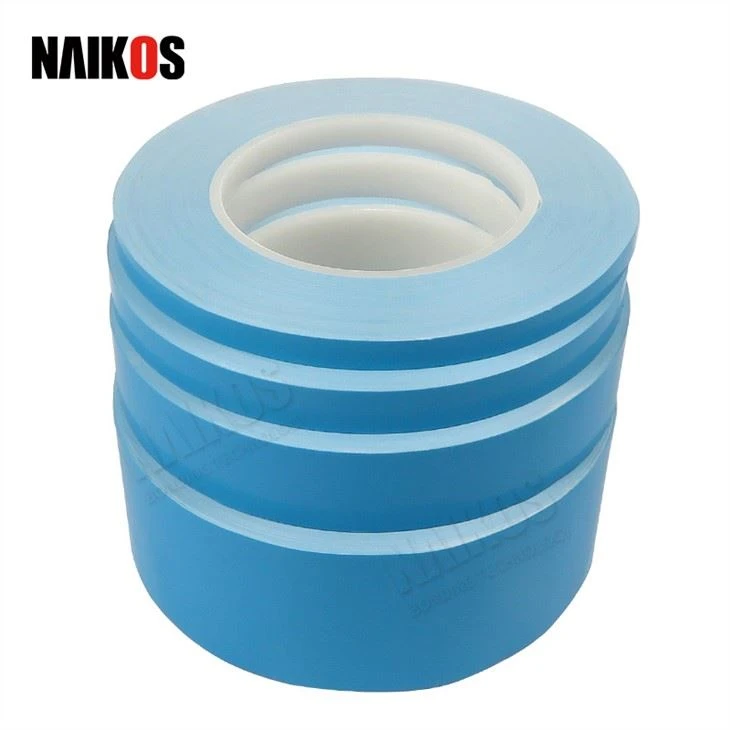

Double Sided Thermal Conductive Adhesive Tape Heat Resistant Dissipation Material for LED Light 1'' Width

Heat Resistant Double Sided Conductive Thermal Tape for LED Lighting is made from glass fiber line with pressure-sensitive adhesive production. NKS series provides a better way for applications requiring good adhesion strength and superior thermal conductive efficiency.

Double Sided Thermal Conductive Adhesive Tape Heat Resistant Dissipation Material for LED Light 1'' Width


PRODUCT DESCRIPTION


Heat Resistant Double Sided Conductive Thermal Tape is made from glass fiber line with pressure-sensitive adhesive production. NKS series provides a better way for applications requiring good adhesion strength and superior thermal conductive efficiency.


APPLICATIONS


FEATURES

* Ideal for uneven surface

* LED tape light

* Flexibility, conformability

* LED light tape

* Wide working temperature range

* Double sided conductive tape

* Heat transfer for electronic components

* Thermal resistant tape

* Stable and Economy

* Heat resistant tape


CONSTRUCTION

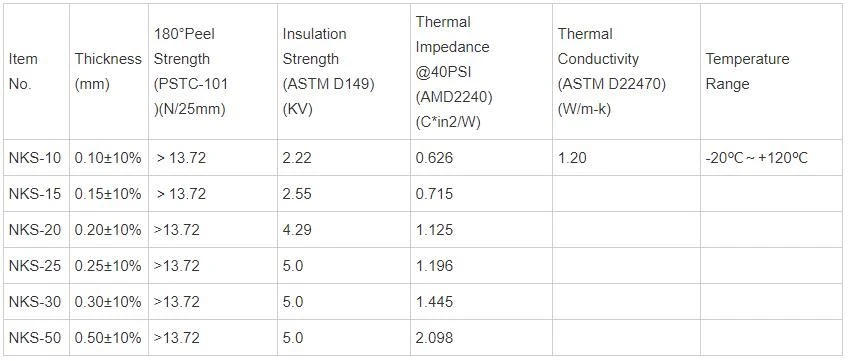

PHYSICAL PROPERTIES

Item No.

Thickness

(mm)

180°Peel Strength

(PSTC-101

)(N/25mm)

Insulation Strength

(ASTM D149)

(KV)

Thermal Impedance

@40PSI

(AMD2240)

(C*in2/W)

Thermal Conductivity

(ASTM D22470)

(W/m-k)

Temperature Range

NKS-10

0.10±10%

>13.72

2.22

0.626

1.20

-20℃~+120℃

NKS-15

0.15±10%

>13.72

2.55

0.715

NKS-20

0.20±10%

>13.72

4.29

1.125

NKS-25

0.25±10%

>13.72

5.0

1.196

NKS-30

0.30±10%

>13.72

5.0

1.445

NKS-50

0.50±10%

>13.72

5.0

2.098

Note: The above technical information and data should be considered representative or typical only and should not be used.


AVAILABLE SIZES

Width: Maximum width 41.3 inches (1030mm). (Can be Customized)

thermal tape.jpg

Length: 25m/50m (Can be customized).

Custom Sizes: If you need customized sizes or die cut parts please feel free to contact NKS sales representative.
