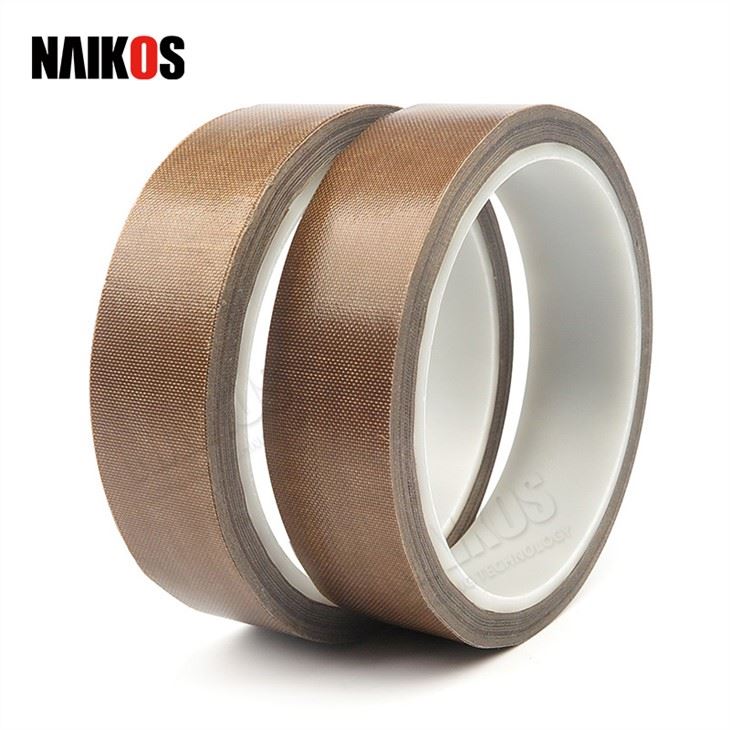

PTFE Coated Fiberglass Tape

PTFE coated fiberglass tape is PTFE coated fiberglass adhesive and high temperature resistant, have a low coefficient of friction, and are chemically inert.

PTFE Coated Fiberglass Tape

PRODUCT DESCRIPTION

PTFE Coated Fiberglass Tape

PTFE coated fiberglass tape is PTFE coated fiberglass adhesive and high temperature resistant, have a low coefficient of friction, and are chemically inert.


FEATURES

* Teflon film very smooth surfaces
* Teflon cloth strong tensile strength

* Anti friction very good due to its low coefficient of friction


APPLICATION

* High temperature works
* Place where needs friction ruduction
* High Voltage Cable Wrapping
* Sliding properties.
* Resistance weather, chemical and water.


CONSTRUCTION

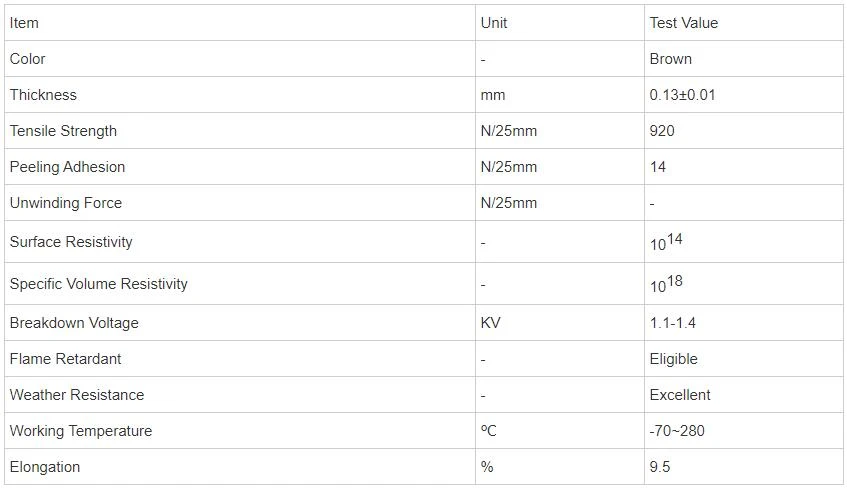

PHYSICAL PROPERTIES

Item

Unit

Test Value

Color

-

Brown

Thickness

mm

0.13±0.01

Tensile Strength

N/25mm

920

Peeling Adhesion

N/25mm

14

Unwinding Force

N/25mm

-

Surface Resistivity

-

1014

Specific Volume Resistivity

-

1018

Breakdown Voltage

KV

1.1-1.4

Flame Retardant

-

Eligible

Weather Resistance

-

Excellent

Working Temperature

-70~280

Elongation

%

9.5

These values are measured values and not guaranteed value.

SHELF LIFE

Product shelf life is 2 years from date of manufacture when stored at room temperature conditions(72°F[22°C]and 50%RH)in the products original packaging.


AVAILABLE SIZES

Width:Maximum width 600mm.(Can be Customized)

Length:10m(Can be customized).

Custom Sizes:If you need customized sizes or die cut parts please feel free to contact NKS sales representative.
