Polyester Adhesive Mylar Tape For Electric Insulation

Polyester Adhesive Mylar Tape For Electric Insulation

Insulation mylar polyester adhesive tape for transformer or battery is used in powder coating, plating and anodizing industry to mask areas that do not require coating or plating. It will remove cleanly without leaving an adhesive residue.

Polyester Adhesive Mylar Tape For Electric Insulation


PRODUCT DESCRIPTION

Polyester Adhesive Mylar Tape For Electric Insulation

Polyester (Mylar)  tape used for outer/interlaminar insulation of transformers and coils, also used for soft bag of the lithium battery bandage, such as in the protection board and the bandage between the batteries, then play a fixed and the role of fire insulation. Naikos has a wide lineup of backing thicknesses and adhesive types/colors.


APPLICATIONS

Electrical insulation of transformers and coils.


FEATURES

Superior electrical insulation.

Superior dimension stability.

Superior heat resistance.

Good processability.



AVAILABLE COLOR

Green, Red, Yellow, Clear, Blue...

Mylar tape.jpg

CONSTRUCTION

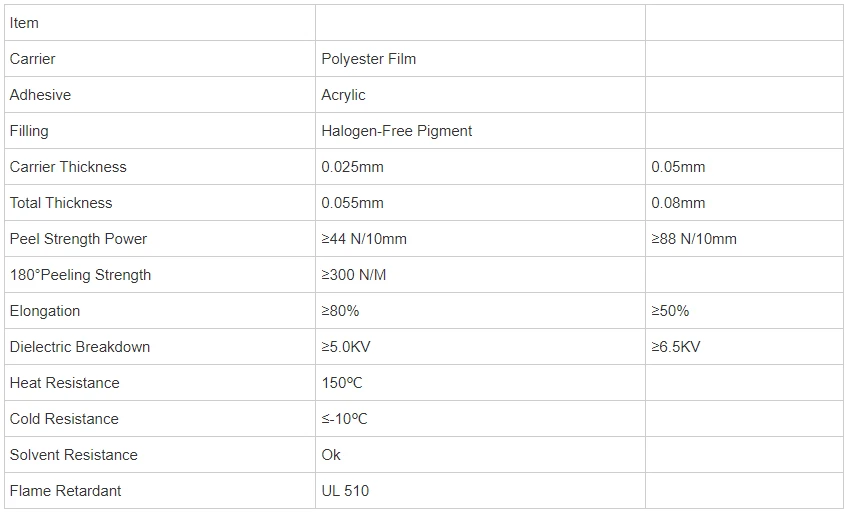

PHYSICAL PROPERTIES

Item



Carrier

Polyester Film

Adhesive

Acrylic

Filling

Halogen Free Pigment

Carrier Thickness

0.025mm

0.05mm

Total Thickness

0.055mm

0.08mm

Peel Strength Power

≥44 N/10mm

≥88 N/10mm

180°Peeling Strength

≥300 N/M


Elongation

≥80%

≥50%

Dielectric Breakdown

≥5.0KV

≥6.5KV

Heat Resistance

150℃

Cold Resistance

≤-10℃

Solvent Resistance

Ok

Flame Retardant

UL 510

Naikos Industrial is one of the excellent manufacturers and suppliers of polyester adhesive mylar tape for electric insulation in China, which is equipped with a professional factory and advanced equipment. We aims at providing you with high quality products with well heat resistance and strong durability which is easy to process. Welcome to buy tapes with us at competitive price.
