Products Description

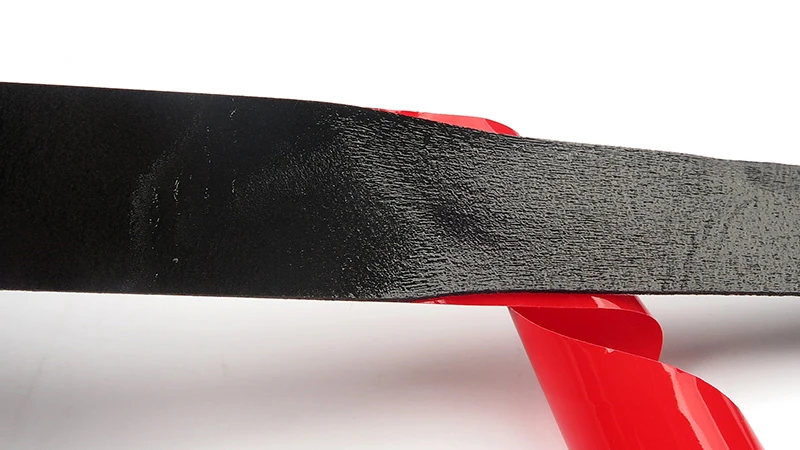

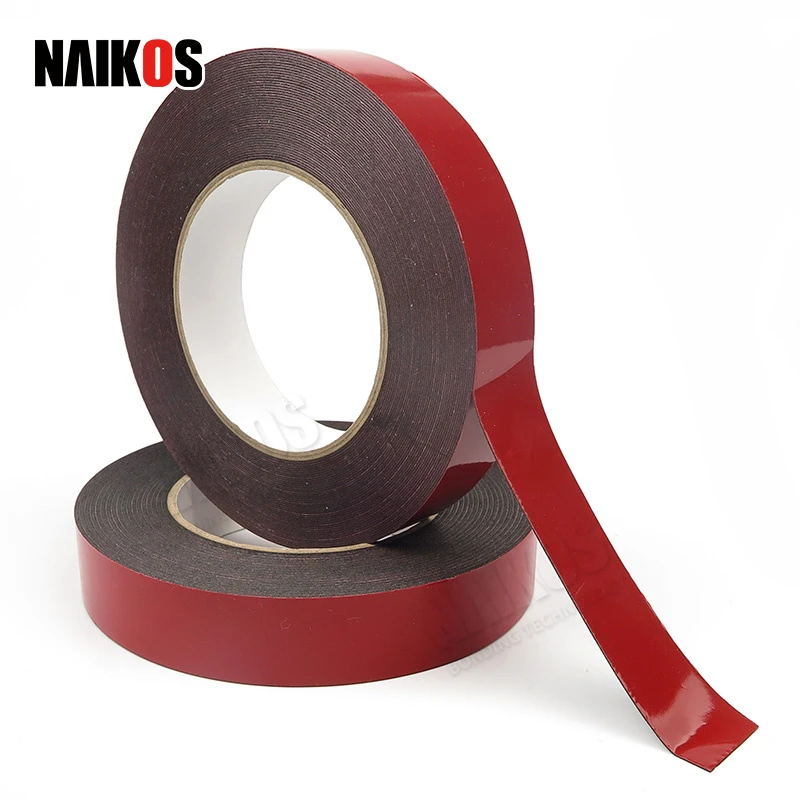

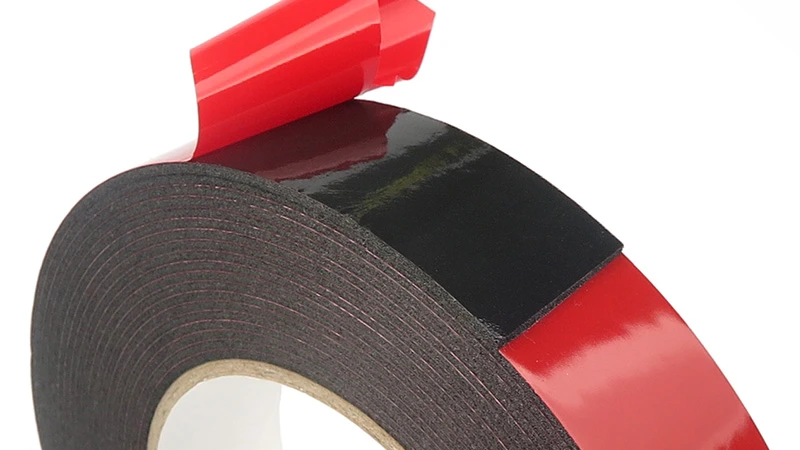

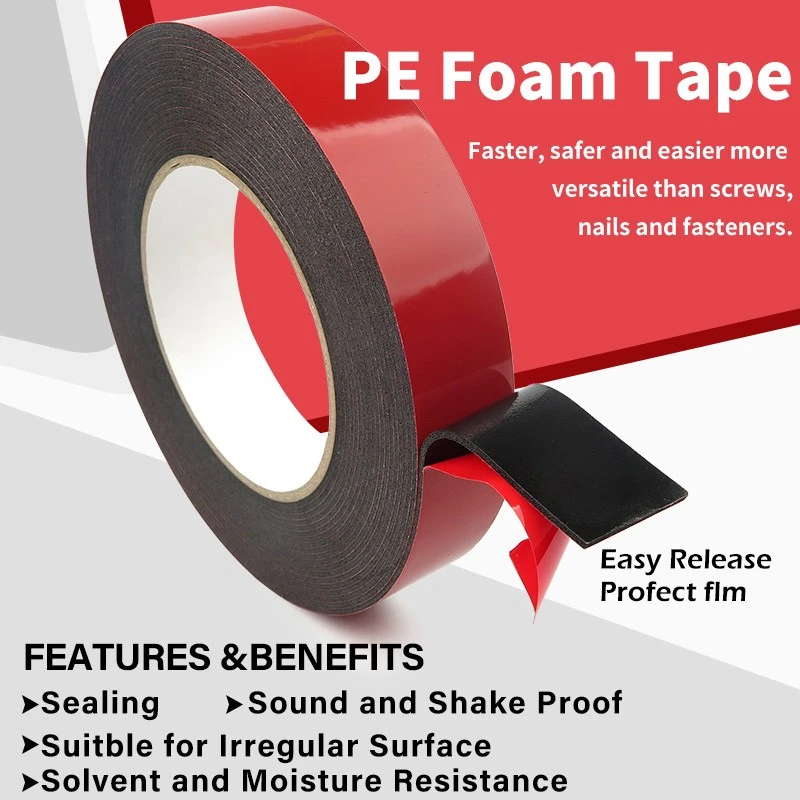

Naikos PE foam tape for strong industrial bonding is engineered for heavy-duty mounting, cushioning, sealing, and component assembly across demanding manufacturing applications. With a flexible polyethylene foam carrier and high-performance acrylic adhesive, our double-sided PE foam tape delivers durable, pressure-sensitive adhesion on smooth and irregular surfaces.
As a trusted China PE foam tape manufacturer, Naikos supplies the NKS PE foam tape series in custom thicknesses (0.2–3.0 mm), colors (white and black), and tailored roll dimensions for OEMs, component manufacturers, and distributors. We provide complete OEM/ODM adhesive solutions, allowing buyers to submit substrate details, operating conditions, and performance specifications for technical review before bulk ordering.
Technical Specifications
The following specifications apply to the NKS-####P PE foam tape series. Confirm the applicable grade and test conditions when requesting a quotation or technical data sheet.
| Item | Specification |
| Model | NKS-####P |
| Color | White / Black |
| Carrier | PE Foam |
| Adhesive | Acrylic Adhesive |
| Total Thickness | 0.2–3.0 mm (8–120 mil) |
| Adhesion to Stainless Steel | ≥15 N/25 mm |
| Holding Power | >24 hours |
| Temperature Resistance | -20 to +120°C (-4 to +248°F) |
| Width | 4–1030 mm, customized width available |
| Length | 33 / 50 / 200 / 300 m, customized length available |
Technical note: Adhesion and holding power depend on the test method, substrate, application pressure, dwell time, and test conditions.
Request the applicable technical data sheet for the complete test specifications.

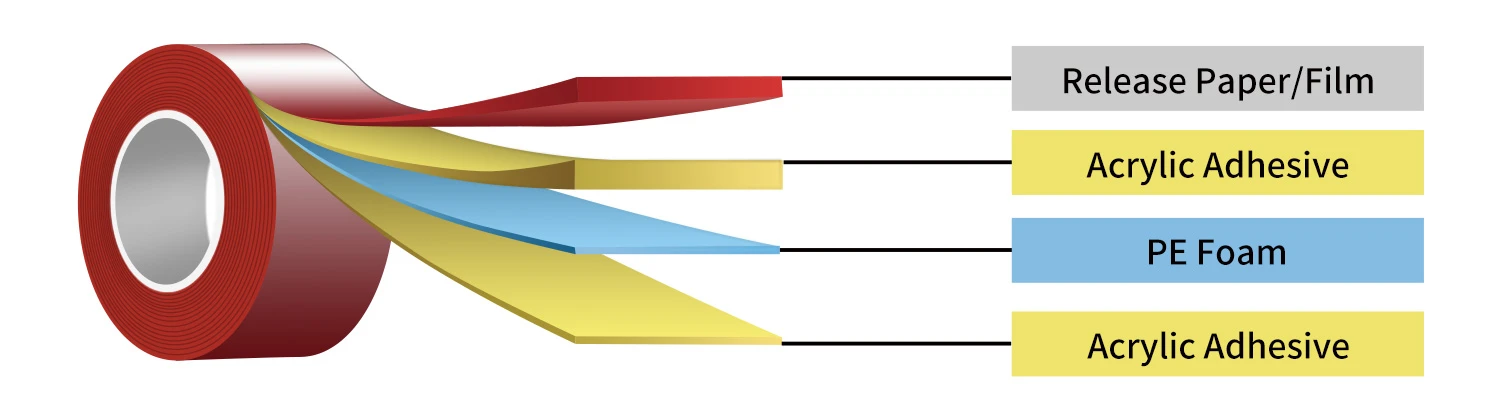

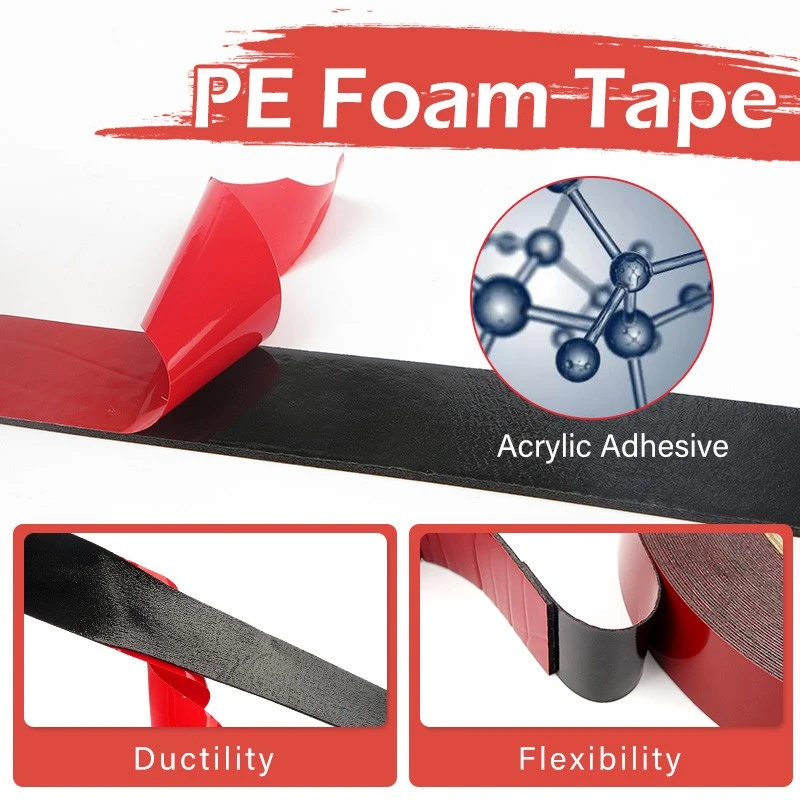

Products Construction

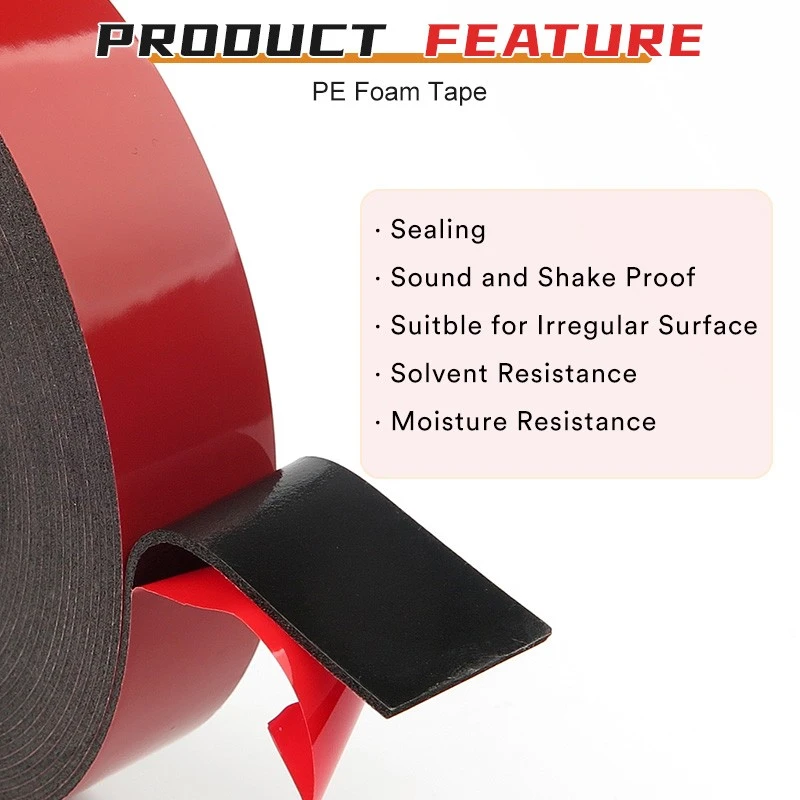

Products Features
Compressible Foam Carrier for Gap Filling
High-density PE foam carrier effortlessly compensates for surface irregularities, sealing gaps and relieving stress between mating assembly parts.
Pressure-Sensitive Acrylic Adhesive
Engineered with a high-tack acrylic adhesive system that instantly bonds under contact pressure-eliminating the need for liquid adhesive curing or wait times.
Wide Temperature & Environmental Resistance
Performs reliably across an operational temperature range of -20°C to +120°C. Excellent moisture, UV, and outdoor exposure durability for demanding industrial environments.
Concealed Double-Sided Mounting
Designed for sleek, invisible mounting of trim parts, lightweight panels, nameplates, and architectural components without visible fasteners.
Request a Technical Data Sheet or sample for evaluation.
Application Scenarios
Automotive Component Assembly
PE foam tape may be evaluated for compatible automotive interior trim, decorative panels, lightweight badges, and mounting components. Substrate compatibility, vibration, temperature cycling, and aging requirements should be checked against the relevant vehicle manufacturer specifications.
Electronics and Appliance Assembly
Suitable grades may be used for selected housings, lightweight components, cushioning pads, and panel interfaces. Electrical insulation performance should be confirmed from the complete tape construction when electrical requirements apply.
LED and Signage Mounting
Double-sided PE foam tape may be suitable for compatible sign panels, lightweight displays, and selected LED assembly components. Confirm the operating temperature, substrate condition, and required holding performance before production use.
Building and Interior Decoration
Selected grades can be evaluated for trim attachment, lightweight panel mounting, and gap cushioning. Outdoor exposure, structural loading, and long-term adhesion require application-specific testing.
Industrial Equipment and General Assembly
PE foam tape can support component positioning, cushioning, and selected sealing tasks. For heavy loads or safety-critical joints, conduct engineering validation before replacing mechanical fasteners.
Packaging and Protective Applications
PE foam tape can be considered for cushioning and positioning in compatible packaging workflows. Heavy-duty carton sealing requires a tape construction specifically designed for carton closure.
Custom Conversion and Die Cutting Services
Beyond standard rolls, Naikos provides end-to-end adhesive converting solutions tailored to your automated assembly lines, dispensing systems, and specific manufacturing needs.
Precision Custom Slitting
Width Capability: Custom roll widths from 4 mm up to 1030 mm.
Compatibility: Strict width tolerances, roll outer diameters, and core sizes (1", 3", etc.) designed to fit your exact slitting/dispensing equipment.
Rewinding & Roll Length Optimization
Standard Lengths: 33 m, 50 m, 200 m, 300 m.
Jumbo & Spool Options: Custom continuous roll lengths available to reduce roll-change downtime on high-speed production lines.
Precision Die-Cut Components
Custom Shapes: Engineered precisely according to your CAD drawings (DXF/DWG/PDF) or physical samples.
Liner & Tab Options: Custom extended liners, pull tabs, and kiss-cut configurations on rolls or sheets for easy peeling and manual/automated application.
Lamination & Special Release Liners
Custom release liners (PE paper, PET film, glassine) and multi-layer laminations matched to your precise converting and die-cutting processes.
Request a Technical Data Sheet or sample for evaluation.
Frequently Asked Questions
Does PE foam tape leave adhesive residue after removal?
Adhesive residue depends on the adhesive chemistry, substrate, dwell time, temperature, and removal method. PE foam mounting tapes are not automatically residue-free or removable. For applications requiring clean removal, evaluate a sample after the intended bonding and aging period.
What temperature can double-sided PE foam tape withstand?
The stated temperature resistance for the specified product series is -20 to +120°C. Buyers should confirm the test conditions, exposure duration, and suitability for thermal cycling with Naikos before approving the tape for production use.
Can PE foam tape bond to PE and PP plastics?
Polyethylene and polypropylene generally present bonding challenges because of their low surface energy. Adhesion depends on the adhesive system, surface treatment, and operating conditions. Provide the plastic grade and expected load for a compatibility review and sample evaluation.
Can Naikos provide custom die-cut samples?
Naikos can review custom die-cut PE foam tape requirements using customer drawings or physical samples. Sample feasibility and lead time depend on tooling, material availability, dimensions, and order complexity. Submit your drawing and specifications for confirmation.
Can Naikos provide RoHS and REACH documentation?
Documentation availability depends on the selected tape construction and applicable regulatory requirements. Naikos can review available declarations and supporting documents for the specified grade before confirming whether the requested documentation can be provided.
Request a PE Foam Tape Sample and Factory Quote
Need PE foam tape for industrial mounting, component assembly, or custom die-cut parts? Send Naikos your substrate details, required thickness, roll dimensions, adhesive requirements, and estimated order quantity.
Our team can review the application and confirm available specifications, sample arrangements, MOQ, and production lead time.
Request a Technical Data Sheet or sample for evaluation.
Contact Naikos for OEM/ODM Adhesive Solutions, wholesale supply, and custom converting support directly from our China manufacturing operation.
