Thermal Tape Thermal Insulation Tape Fiberglass Thermal Conductive AdhesiveTape For PCB Chip

Thermal Tape is made of an advanced thermal conductive pressure sensitive adhesive.
* Stable and Economy
* Various thicknesses for choice(0.01mm, 0.015mm, 0.025mm, 0.03mm, 0.05mm...)
* Thermal insulation material

Thermal Tape Thermal Insulation Tape Fiberglass Thermal Conductive AdhesiveTape For PCB Chip

PRODUCT DESCRIPTION

Thermal Tape Thermal Insulation Tape Fiberglass Thermal Conductive AdhesiveTape For PCB Chip

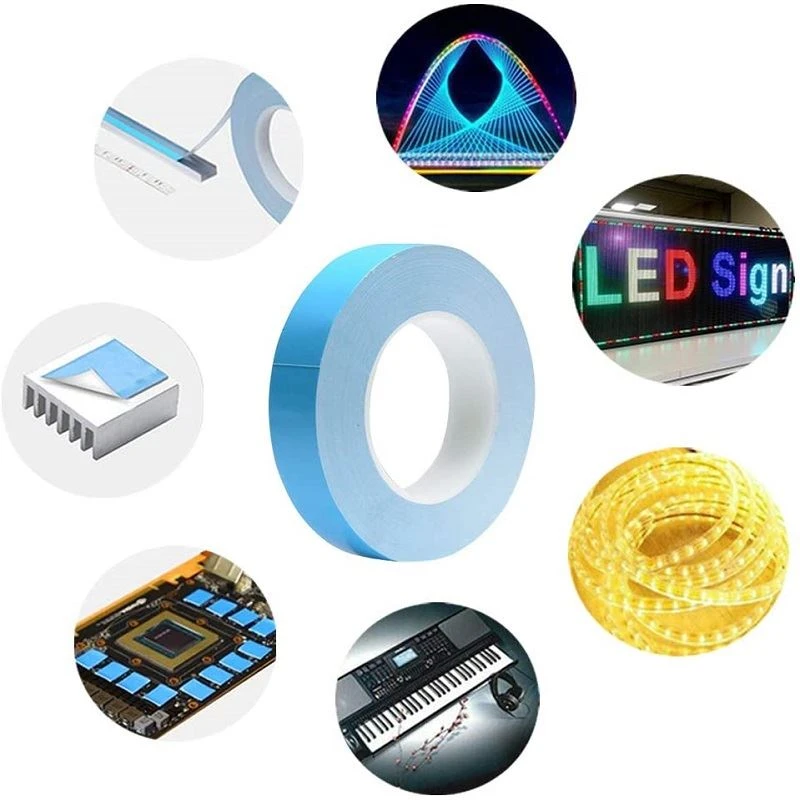

Thermal Tape is made of an advanced thermal conductive pressure sensitive adhesive. NKS series is suitable to apply to electronic mechanical components assembly such as the heatsink module and LED light bar module to provide a better heat-transfer path between heat generating components and heat sink or other cooling devices.


APPLICATIONS



FEATURES

* Good adhesion and thermal conductivity

* Thermal conductive tape

* Flexibility and conformability

* Thermal adhesive tape

* Wide working temperature range

* Thermal insulation material

* Various thicknesses for choice

* Fiberglass measuring tape

* Stable and Economy

* Fiberglass insulation tape

CONSTRUCTION

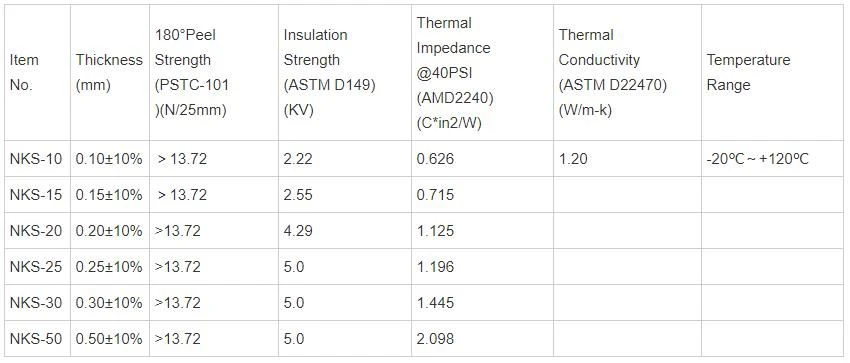

PHYSICAL PROPERTIES

Item No.

Thickness

(mm)

180°Peel Strength

(PSTC-101

)(N/25mm)

Insulation Strength

(ASTM D149)

(KV)

Thermal Impedance

@40PSI

(AMD2240)

(C*in2/W)

Thermal Conductivity

(ASTM D22470)

(W/m-k)

Temperature Range

NKS-10

0.10±10%

>13.72

2.22

0.626

1.20

-20℃~+120℃

NKS-15

0.15±10%

>13.72

2.55

0.715

NKS-20

0.20±10%

>13.72

4.29

1.125

NKS-25

0.25±10%

>13.72

5.0

1.196

NKS-30

0.30±10%

>13.72

5.0

1.445

NKS-50

0.50±10%

>13.72

5.0

2.098

Note: The above technical information and data should be considered representative or typical only and should not be used.


SHELF LIFE

Product shelf life is 2 years from date of manufacture when stored at room temperature conditions (72°F [22°C] and 50% RH) in the products original packaging.


AVAILABLE SIZES

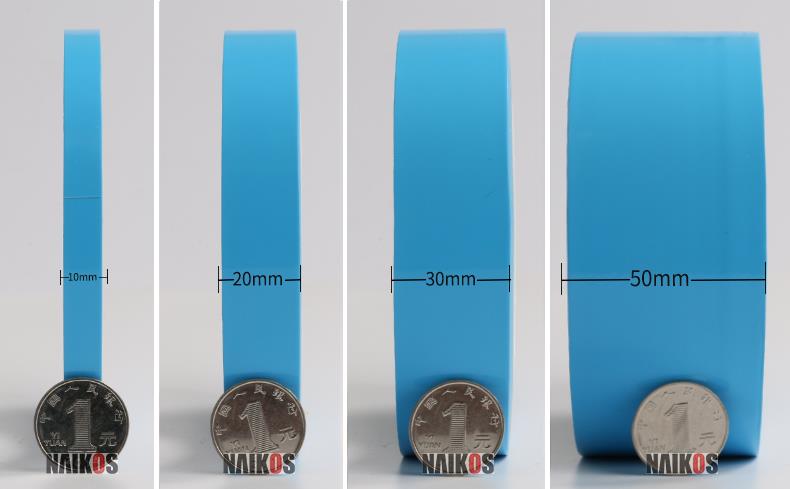

Width: Maximum width 41.3 inches (1030mm). (Can be Customized)

thermal tape.jpg

Length: 25m/50m (Can be customized).

Custom Sizes: If you need customized sizes or die cut parts please feel free to contact NKS sales representative.
